100M Hand-held Sonar LCD Fish Finder w/ Alarm
100M Hand-held Sonar LCD Fish Finder w/ Alarm

100M Hand-held Sonar LCD Fish Finder w/ Alarm

Regular price $71.98 Sale

FFC1108-1

1 (1)FFC1108-12

01.PUT THE SENSOR IN FISHING SPOT

FFC1108-13

02.SONAR SENSOR DETECT

FFC1108-14

03.SONAR COVERAGE:45 DEGREES IN 200Khz

1 (2)FFC1108-16--

1. Sensitivity indicator                 5.Battery strength indicator

2. Battery save on/off                   6.Water depth indicator

3. Fish alarm on/off                     7.Backlight on/off

4. Left arrow                            8.Fish depth indicator

                                         9.Right arrow

                                         10.Power on/offFFC1108-17-

1.Float

      2.Transducer

3.Cable

1 (8)FFC1108-15

01.night fishing probe

02.turbid water probe

03.ice fishing probe



PRODUCT SPECIFICATION OF FFC1108-1:

1) Display: 2inch TN/ANTI-UV LCD

2) Back lighting: White LED

3) Depth Capability: 328feet(100m)

4) Power Requirement: 4xAAA alkaline batteries

5) Waterproof design: level-4 (spray-water-proof)

6) Show water depth, fish location, and bottom grass & rock

7) User selectable sensitivity,depth units, and fish alarm setting

8) Operational Temperature:  14°F to 122°F(-10°C to 50°C)









FFCW1108-1

1 (1)FFW1108-17

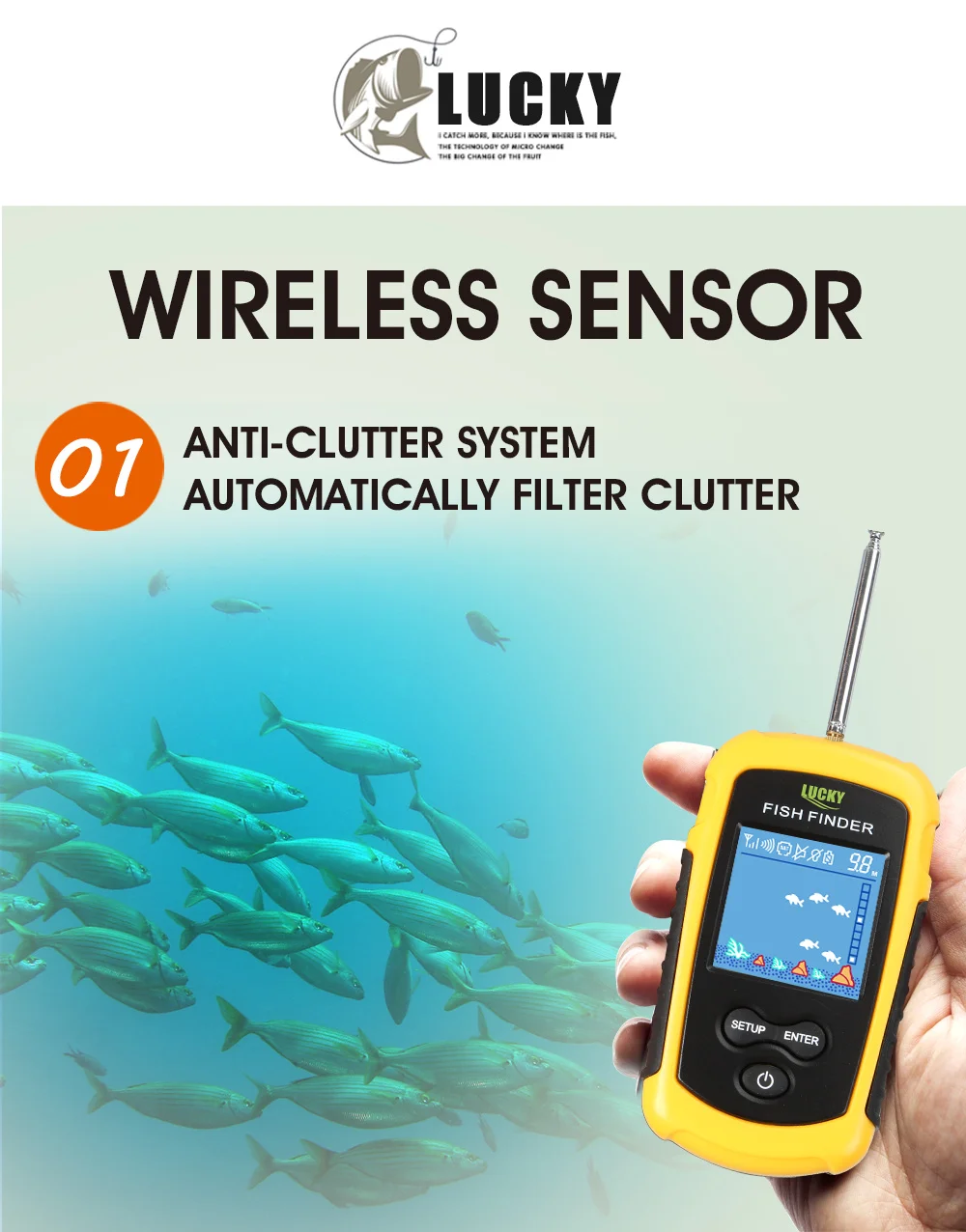

1. anti-clutter system automatically filter clutter

FFW1108-18

2. Fish alarm



FFW1108-19

3. Sonar coverage :90 degrees in 125 Khz

FFW1108-110

4. Wireless operating range

FFW1108-16



HOW TO USE LUCKY FISH FINDER?

01.tie it to the end of fishing line and cast it into the water

02.wireless sonar sensor send sound waves

03.returned echoes transmitted to the fish finder

FFW1108-111---

1. signal indicator            6.battery strength indicator

2. Sensitivity indicator      7.water depth indicator

3. Battery save on/off       8.backlight on/off

4. Fish alarm on/off         9.fish depth indicator

5. Left arrow                   10.right arrow

                                      11.power on/off



1 (9)FFW1108-11





1. seal cover

2. Seal ring

3. Battery place

4. Sonar detection

5. Hole tied to fishing line



PRODUCT SPECIFICATION OF FFCW1108-1:

1) Display: 2inch TN/ANTI-UV LCD

2 )Back lighting: White LED

3) Depth Capability: 130feet(40m)

4) Wireless Sonar: 90 degrees beam angle in 125Khz

5) Wireless operational Range: 400feet(120m)

6) Power Requirement: 4xAAA alkaline batteries

7) Wireless Sensor battery reauirement: one replaceable CR2032 battery

8) Waterproof design: level-4 (spray-water-proof)

9) Show water depth, fish location, and bottom grass & rock

10) User selectable sensitivity , depth units, and fish alarm setting

11) Wireless Sensor could shut down when it is out of the water

12) Operational Temperature:  14°F to 122°F(-10°C to 50°C)
